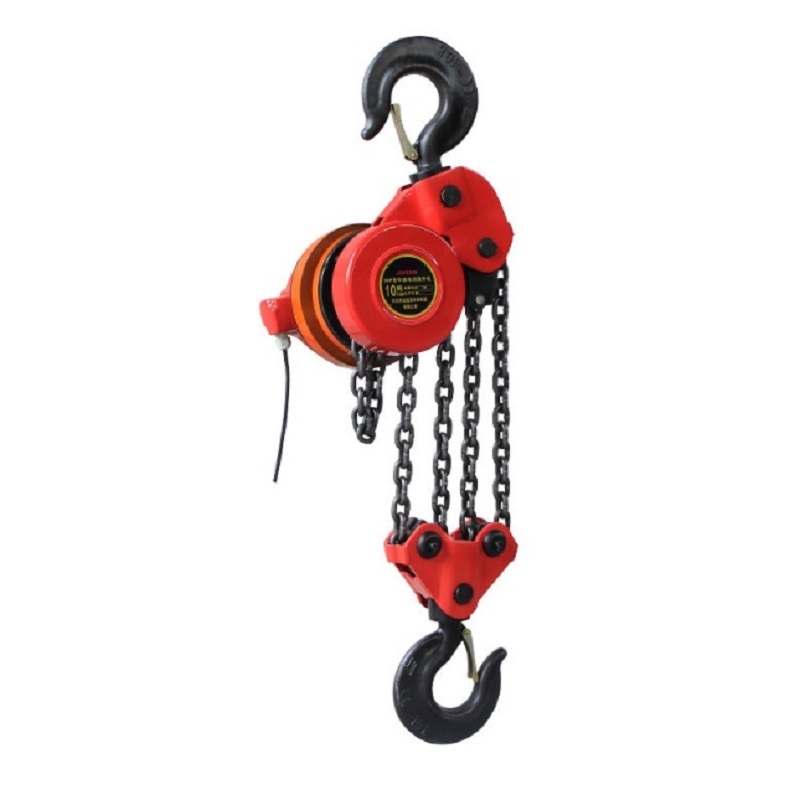

The Ultimate Guide to DHP Group Lifting Electric Chain Hoist for Scaffolding & Tanks

In high-rise construction and large-scale industrial storage tank manufacturing, safety is entirely dependent on structural balance. Traditional electric hoists focus primarily on speed and single-point load capacities. However, when lifting an entire building's external scaffolding or a massive steel oil tank, speed becomes secondary to absolute synchronization. This is where the DHP group lifting electric chain hoist serves as the industry-standard solution.

Commonly referred to as the climbing scaffolding crane or tank welding group hoist, the DHP series is specifically engineered for multi-unit synchronized heavy traction. In this technical brief, we will analyze the engineering mechanics that make DHP electric hoists the safest choice for complex, low-speed group lifting projects worldwide.

1. The Science of Low-Speed Synchronization in Group Hoisting

Why do standard high-speed hoists fail in construction scaffolding and tank building? The answer lies in structural kinetics. When lifting thousands of kilograms of interconnected framework, even a minor variance of millimeters in lifting speed between points can generate catastrophic structural stress, leading to tilting or scaffolding collapse.

The DHP series mitigates this risk by operating at a strictly calibrated low speed (typically ranging from 0.09 to 0.18 meters per minute). Powered by a specialized plate-type braking motor and decelerated through a high-precision planetary gear reducer, every single DHP group lifting electric chain hoist in the network rises at an identical rate. This elite synchronization prevents structural warping and maintains perfect equilibrium across dozens of linked hoist points.

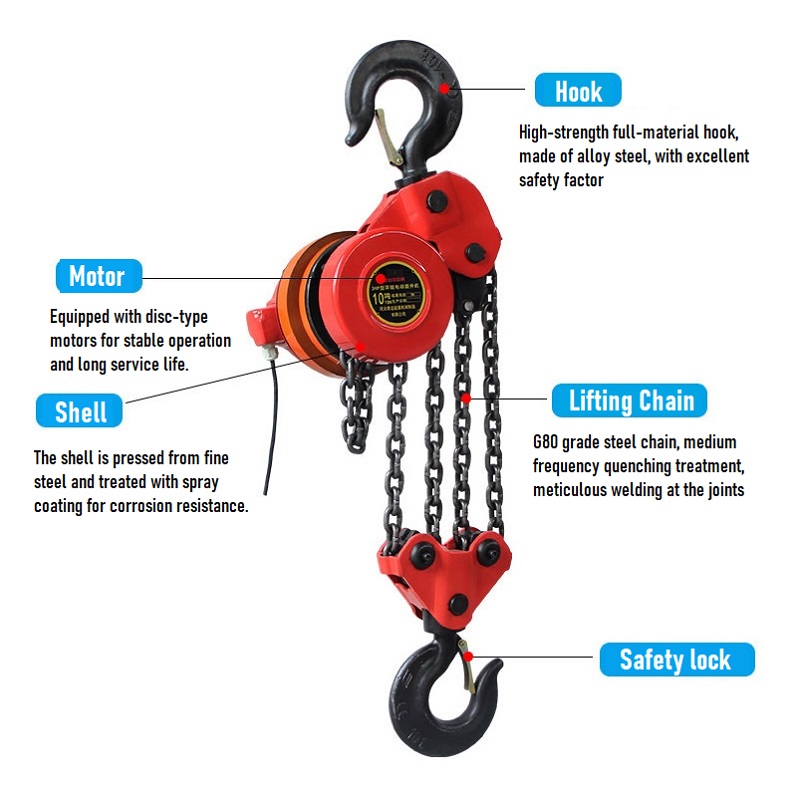

2. Advanced Mechanics: Disc Brake Motor & Planetary Reducer

The internal engineering of Tieshou Lifting’s DHP chain hoist is meticulously optimized for the prolonged duty cycles typical of engineering projects:

• Side-Magnetic Disc Braking Motor: Features advanced braking responses. The instant the power system turns off, the mechanical disc brake locks the load securely in place, completely eliminating the slipping vulnerabilities found in traditional manual chain blocks.
• Heavy-Duty Planetary Gear Train: Unlike ordinary gear sets, the internal planetary gear system distributes mechanical stress evenly across multiple load-bearing contact points. This results in quieter operation, high structural hardness, and exceptional resistance against wear and sudden impacts.
• G80 Alloy Load Chain: Forged from premium-grade heat-treated alloy steel, ensuring the chain maintains high tensile elasticity and will stretch slowly rather than breaking abruptly under extreme accidental overloads.

3. Key Applications: Climbing Scaffolding and Large Oil Tanks

The DHP group lifting electric chain hoist bridges the gap between the portability of manual blocks and the automation of heavy machinery. Its dual-cover protective housing isolates electrical elements from dust and concrete splash, rendering it highly effective for two main applications:

High-Rise Scaffolding Systems: Whether a building is 10 layers or 50 layers high, the external wall scaffold can be steadily elevated as construction progresses. By utilizing a master electronic control box as the center control system, an operator can command dozens of DHP hoists simultaneously, reducing labor costs and scaffolding materials by over 50%.

Large Oil Tank Inverted-Welding: In oil refinery construction, steel tanks are welded layer by layer from top to bottom. DHP hoists are positioned in a circular configuration inside the tank shell, raising the entire heavy roof dome seamlessly to allow the next steel plate section to be welded underneath safely.
