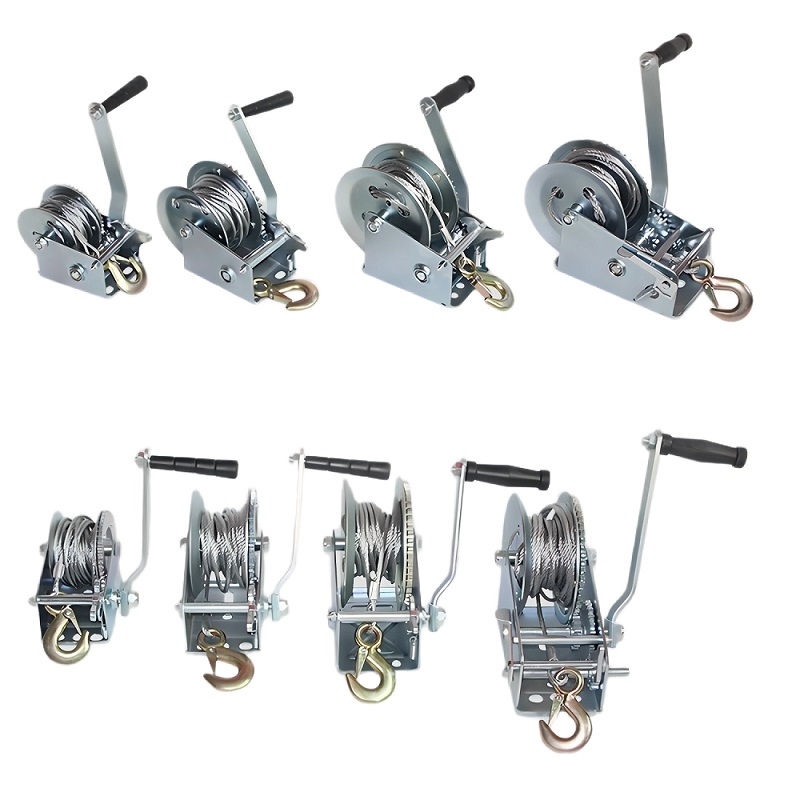

Manual Lock Hand Winch

Manual Lock Hand Winch Description：

This hand winch is a compact, reliable manual lifting and pulling tool, engineered for a wide range of applications—from trailer towing, boat launching, and off-road recovery to garage organization and farm use. It combines a robust gear system, high-tensile steel cable, and a self-locking brake mechanism to deliver controlled, safe power for moving heavy loads with minimal effort.

Company Profile

Hebei Tieshou Hoisting Machinery Manufacturing Co., Ltd. is a professional lifting equipment manufacturer with over 20 years of experience in design, production, and export. We specialize in chain blocks, lever hoists, electric chain hoists, wire rope hoists, hand winches, magnet lifters, mini cranes, G80 lifting chains, and rigging accessories.
Our products are widely used in construction, manufacturing, logistics, and warehouse industries, known for safety, durability, and reliable performance. Certified with ISO9001, CE, and GS, Tieshou ensures every product meets international standards.
With advanced facilities, experienced technicians, and a professional sales team, we provide OEM & ODM services and customized lifting solutions for global clients. Tieshou is committed to quality, innovation, and long-term cooperation with partners worldwide.

Manual Lock Hand Winch   Introduction

Built with durability and safety at its core, our hand winch features a precision-engineered gear train and a self-locking pawl system to prevent reverse movement, ensuring loads stay securely in place. The winch is constructed from premium alloy steel and galvanized components to resist corrosion, making it suitable for both indoor and outdoor use. Its ergonomic crank handle provides comfortable leverage, while the heavy-duty hook and steel cable work together to handle demanding pulling tasks.

Hand crank winch product parameters

Hand crank winch product parametersModel	Lifting pulling force(KG)	Working tension	Breaking tension	speed ratio	Wire dia. And length	L	W	H	N. W.
		(KG)	(KG)		(MM)	(MM)	(MM)	(MM)	(KG)
					(M)
600lbs	175	270	400	3.2:1	3*8	150	85	120	2.5
800lbs	230	360	540	3.2:1	3*8	150	85	120	2.6
1000lbs	290	450	670	3.6:1	4*8	183	90	151	3.3
1200lbs	350	540	810	3.6:1	4*8	183	90	151	3.4
1400lbs	400	630	940	4:01	4*8	204	90	178	3.8
1600lbs	460	720	1080	4:01	4*8	204	100	178	4
1800lbs	520	810	1200	5:01	4*8	245	100	180	4.3
2000lbs	560	900	1350	5:01	4*8	245	100	180	4.6
2500lbs	700	1100	1650	8:01	5*8	245	100	183	4.9
3000lbs	870	1350	2000	8:1/4:1	5*8	255	100	183	5.6

Hand Winch Actual Safe Lifting & Labor-Saving Range

Model	Safe Lifting & Labor-Saving Range	Model	Safe Lifting & Labor-Saving Range
600lbs	lifting Capacity50kg	1600lbs	lifting Capacity150kg
800lbs	lifting Capacity70kg	1800lbs	lifting Capacity170kg
1000lbs	lifting Capacity90kg	2000lbs	lifting Capacity190kg
1200lbs	lifting Capacity110kg	2500lbs	lifting Capacity350kg
1400lbs	lifting Capacity130kg	3000lbs	lifting Capacity400kg

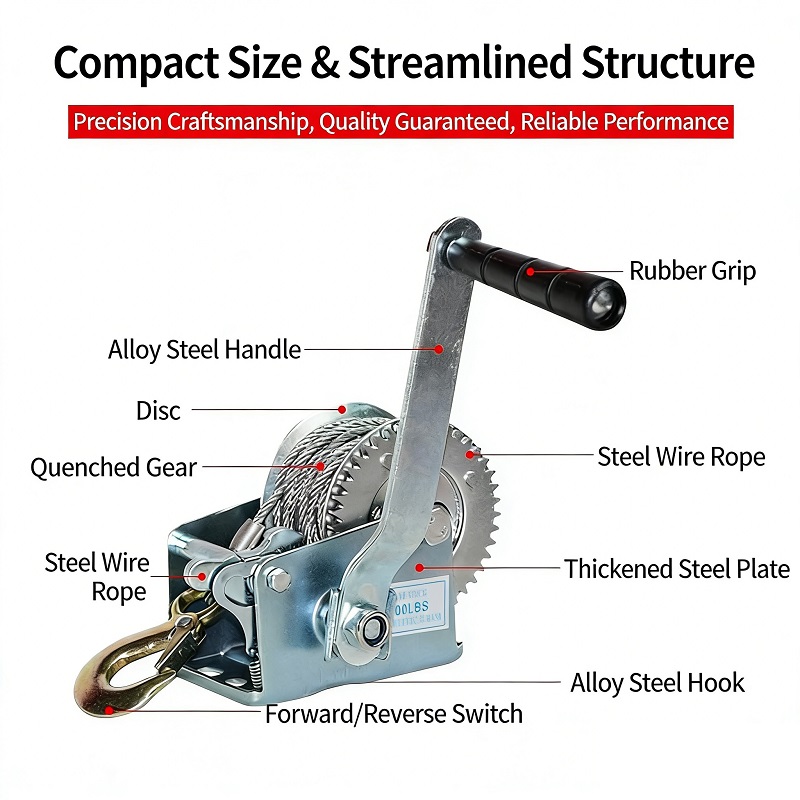

Manual Lock Hand Winch    Features

Key Features

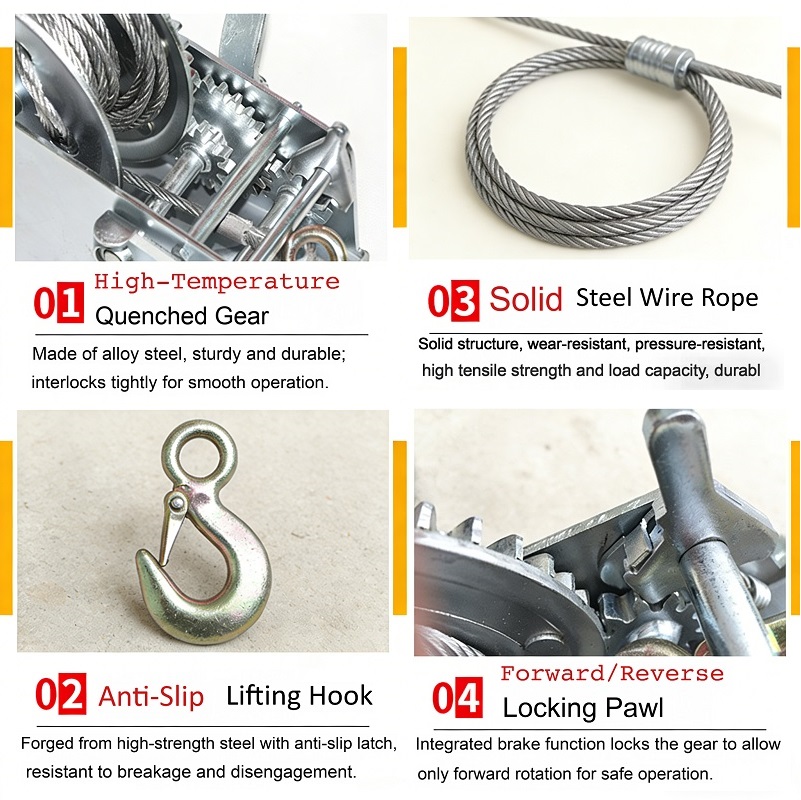

High-Temperature Quenched Gears: Made of alloy steel, these gears undergo high-temperature quenching for exceptional hardness and wear resistance. The tightly meshed teeth ensure smooth, efficient power transmission and long-lasting performance.
Anti-Slip Safety Hook: Forged from high-strength steel and equipped with a safety latch, this hook prevents accidental disengagement and ensures a secure connection to loads.
Solid Steel Wire Rope: The thick, multi-strand steel cable offers superior abrasion resistance, high tensile strength, and heavy load-bearing capacity, making it ideal for frequent, heavy-duty use.
Forward/Reverse Locking Pawl: Integrated brake functionality locks the gear in place to prevent reverse rotation, providing reliable load retention and enhanced operational safety.
Ergonomic & Compact Design: The lightweight, space-saving structure and comfortable crank handle allow for easy operation and storage, even in tight spaces.
