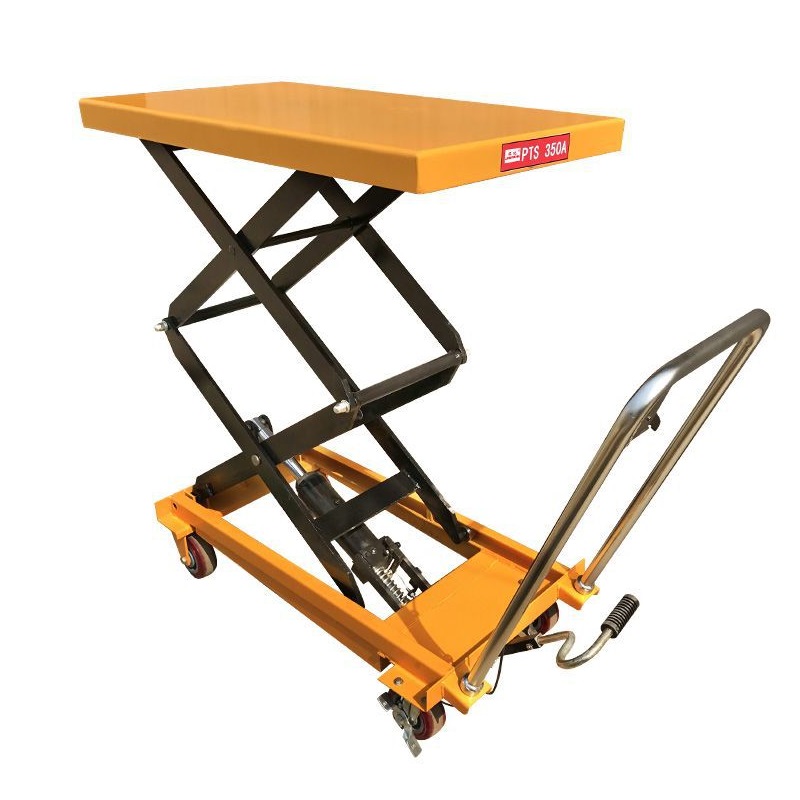

Small Manual Hydraulic Lift Table Cart

Small Manual Hydraulic Lift Table Cart  Description：

This small manual hydraulic lifting platform truck is a reliable and cost-effective material handling tool, ideal for warehouses, workshops, retail stores, and logistics scenarios. Powered by a manual hydraulic system, it delivers smooth, stable lifting and lowering of goods without relying on electricity, making it suitable for both indoor and outdoor use.
Available in both single-scissor and double-scissor configurations, it offers a range of load capacities (350KG–500KG) and lifting heights (280MM–1500MM) to adapt to different operational needs. Its compact, mobile design ensures easy maneuverability in narrow spaces, helping to improve work efficiency and reduce manual labor intensity. Customized Available.

Company Profile

Hebei Tieshou Hoisting Machinery Manufacturing Co., Ltd. is a professional lifting equipment manufacturer with over 20 years of experience in design, production, and export. We specialize in chain blocks, lever hoists, electric chain hoists, wire rope hoists, hand winches, magnet lifters, mini cranes, G80 lifting chains, and rigging accessories.
Our products are widely used in construction, manufacturing, logistics, and warehouse industries, known for safety, durability, and reliable performance. Certified with ISO9001, CE, and GS, Tieshou ensures every product meets international standards.
With advanced facilities, experienced technicians, and a professional sales team, we provide OEM & ODM services and customized lifting solutions for global clients. Tieshou is committed to quality, innovation, and long-term cooperation with partners worldwide.
Small Manual Hydraulic Lift Table Cart   Introduction
Engineered for efficient light and medium material handling, our Small Manual Hydraulic Lifting Platform Truck is a must-have auxiliary equipment for modern industrial and commercial workplaces. It abandons complex electric drive systems and adopts a mature manual hydraulic transmission structure, which not only simplifies daily operation and maintenance but also eliminates restrictions on use scenarios—no need for power supply, it can be flexibly used in warehouse shelves, workshop assembly lines, retail cargo sorting, and outdoor temporary cargo handling.

The whole vehicle is made of high-quality steel with integrated welding and reinforced structural design, which ensures excellent load-bearing performance and structural stability while controlling the overall weight for easy pushing and moving by a single person. Whether it is lifting small batches of goods for height adjustment, matching the operation height of other equipment, or short-distance handling of heavy objects in narrow areas, this platform truck can perfectly meet the demand, effectively reducing the labor intensity of workers in repeated bending and lifting, and greatly improving the overall efficiency of on-site material handling.

Parameter sheet:

MODEL	FAB350A	FAB500A	FAC350A	FAC500A	FAS350A	FAS500A
Fork shear form	Single-shear fork			Double-shear fork
Load capacity/KG	350	500	350	500	350	500
Minimum height/MM	280	280	350	300	310	360
Maximum height/MM	900	900	1300	1300	1500	1500
Wheel diameter/MM	125	125	125	125	125	125
Handle height/MM	960	960	960	960	960	960
Overall length of the vehicle/MM	880	880	980	980	980	980
Tabletop size/MM	820*500*50			920*500*50
Vehicle's own weight/KG	72	75	105	105	105	105
Outer packaging size/	900*510*310			1000*510*310

Small Manual Hydraulic Lift Table Cart    Features

Key Features

1．Upgraded Thickened Painted TabletopThe high-quality painted steel tabletop is reinforced with a thickened design for enhanced durability. It features excellent corrosion resistance, strong load-bearing capacity, and a long service life even in harsh working environments.

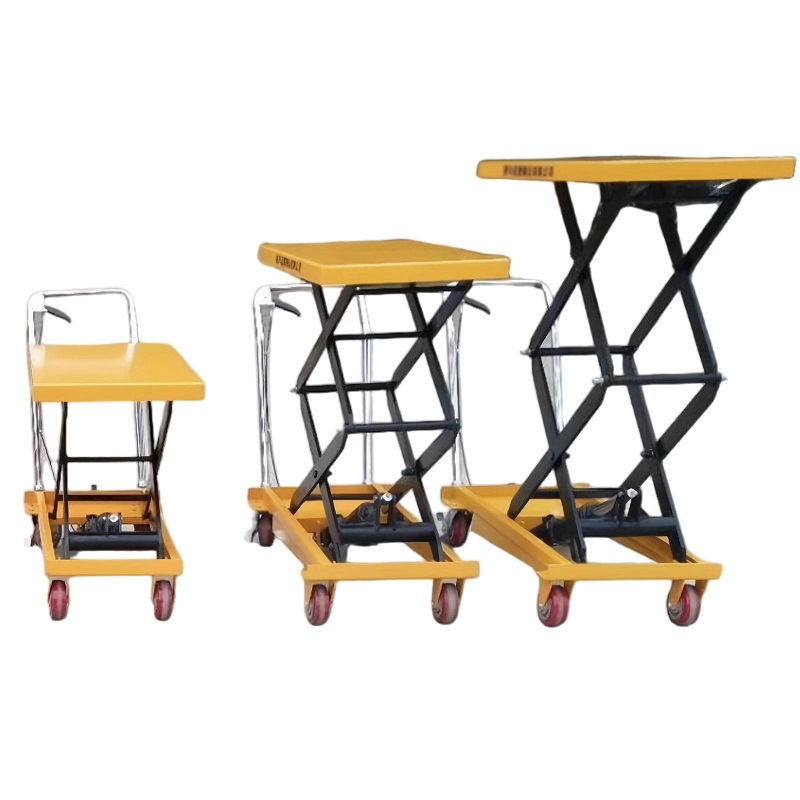

2．Dual Scissor Design Options
3．Single-scissor (FAB/FAC series): Provides stable lifting for standard height requirements, with a maximum height of 900–1300MM.
4．Double-scissor (FAS series): Delivers extended lifting up to 1500MM, perfect for high-level storage and operation scenarios.
5．Wear-Resistant PU Casters with BrakesEquipped with heavy-duty polyurethane casters that offer quiet movement, high toughness, and exceptional wear resistance. The integrated brake system locks the platform securely in place during loading/unloading, ensuring safety for both goods and operators.
6．Ergonomic Control HandleThe humanized handle design allows precise control over lowering position and speed, ensuring flexible, fatigue-free operation even during prolonged use.
7．Labor-Saving Foot Pedal LiftThe built-in foot pedal mechanism enables effortless lifting of heavy loads with minimal physical effort, making the platform both time-efficient and user-friendly.
8．Versatile Model SelectionMultiple models (FAB350A, FAB500A, FAC350A, FAC500A, FAS350A, FAS500A) are available with customizable load capacities, platform sizes, and height ranges, ensuring a perfect match for your specific application.
